Description

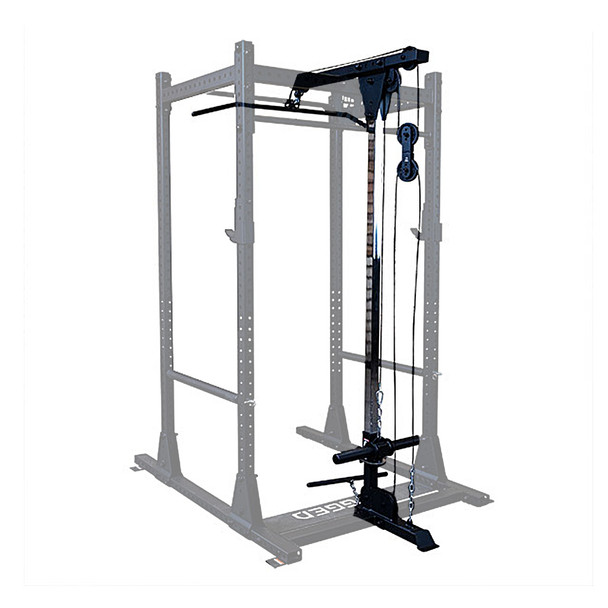

The RUGGED by Body-Solid Lat Attachment is a rear-mounted cable system engineered specifically to integrate with the RUGGED by Body-Solid Y100 Power Rack. By adding high and low cable pulleys to the rack's rear enclosure, the unit expands training options to include lat pulldowns, low seated rows, arm curls, and cable pressdowns without widening the rack.
Construction & Cable Specs
Built with 2" x 3" 11-gauge steel tubing, the frame features an electrostatically applied black powder coat finish to protect against chipping and surface wear. Drive mechanics use smooth-tracking pulleys paired with 2,200 lb. test-rated, nylon-coated aircraft cables designed for fluid operation under high-weight loads.
Plate Carriage & Accessories
The plate-loaded carriage features dual 2-inch diameter posts compatible with standard Olympic weight plates and high-density rubber bumper plates. The system includes a lat pulldown bar, a low row bar, and quick-connect snap links that allow users to easily attach alternative cable handles and grips.
- Specifically designed to work with the RUGGED by Body-Solid Y100 Power Rack
- Finish: Electrostatically applied black powder coat finish
- Olympic Plate Posts accommodate all 2" Olympic weight plates and bumpers
- Includes: lat bar and low row bar
- Product Dimensions (Lat Attachment Only): 9.1” L x 52.6” W x 89.4” H
- Product Weight (Lat Attachment Only): 86 lbs.
Product Specifications
|
Application/Use:
|
Commercial
|
|
Product Manual:
|
|
|
Schematic:
|
|
|
Warranty:
|
